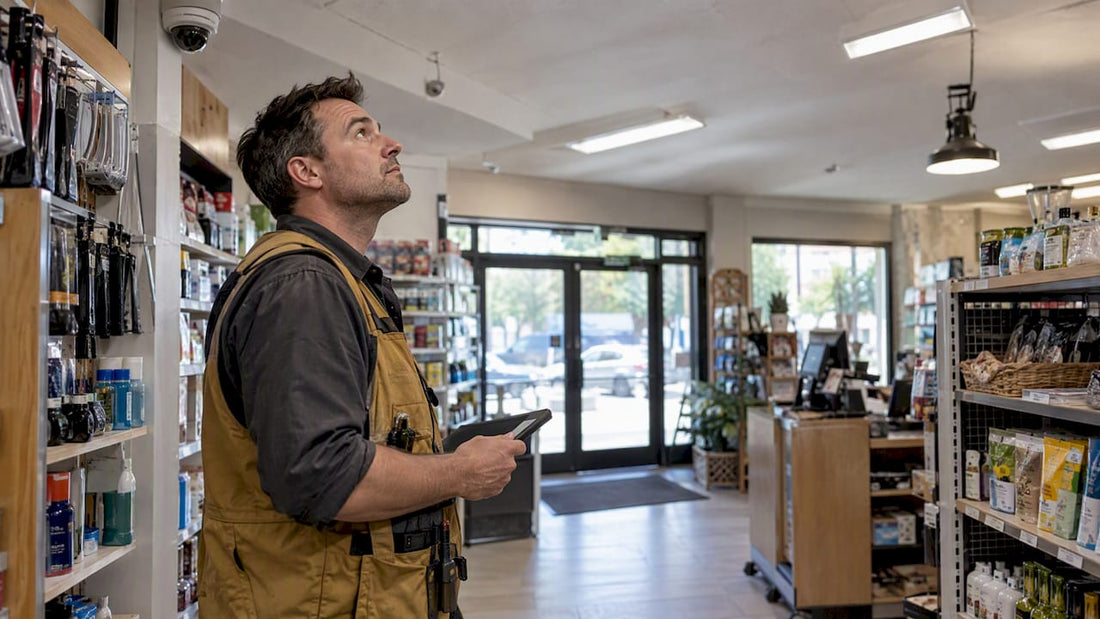

Installer surveying camera positions in a retail store

Store Camera Placement: Map 6 Zones Before Drilling

Cover six zones: entrances and exits, checkout, aisles and intersections, high-value displays, stockroom and receiving, and exterior approaches. Pair overview cameras that show full context with identification cameras aimed to capture faces and hands. The right way to decide exact mounting points is a site walk that maps traffic flow, blind spots, and evidence needs before anyone drills a hole. The sections below cover zone examples, hardware pairings, a repeatable site-walk method, and a manager’s checklist.

TL;DR:

  • At entrances, mount identification cameras 8 to 12 feet high at a diagonal; use a separate overview view for approach paths and parking.
  • At checkout, pair an overhead register view with a close view of hands; aim a dedicated self checkout camera at the payment pad and scanner.
  • Use 8 to 16 mm varifocal lenses for distant faces and 16 to 24 mm lenses for floor context; diagonal aisle views see past shelving.
  • Before drilling, walk the store during peak traffic, mark blocked sightlines, and review temporary test clips on a large screen for face clarity.
  • Keep cameras out of restrooms and fitting rooms, and provide customers and employees clear notice plus documented controls before biometric recognition.
Safes and Security Solutions
Equip Your Store With Security Cameras
Explore surveillance cameras and security systems designed to help businesses monitor their property and protect valuable assets.
Explore security products

Table of Contents

Placement Examples for Every Retail Zone

Each zone has a different job to do, and the camera setup should match that job rather than a one-size-fits-all approach.

At the front entrance, mount an identification camera at roughly 8 to 12 feet, angled diagonally inward so it captures faces as people walk through the door rather than the tops of their heads. Pair it with an exterior overview camera positioned to catch the approach path and, where relevant, license plates in the parking area.

Checkout needs two angles working together. An overhead camera spanning the full register width documents the transaction and the surrounding area, while a second, lower-angled camera focuses tightly on hands and the point of sale. Self-checkout stations raise the stakes here: a close-range detail camera aimed directly at the payment pad and scan area catches swapped barcodes and skipped scans that a wide shot would miss entirely.

Aisles and intersections are where most blind spots originate, usually because tall shelving or end-cap displays break sightlines. Diagonal corner mounts covering the length of each aisle solve this better than a straight-down view, since a diagonal angle sees past the first few feet of shelving into the row itself. Walk every aisle and note exactly where a six-foot shelf swallows the camera’s line of sight. OSHA’s retail safety guidance specifically recommends keeping shelving low and signage minimal near windows and sightlines, which helps cameras as much as it helps staff watching the floor.

High-value displays, electronics, jewelry cases, liquor, or anything behind a locked cabinet, call for a focused, tamper-resistant camera positioned to catch both the face of whoever approaches and their hands as they interact with the product. A wide overview from across the store will not give you a usable still frame here; this is identification-camera territory.

Stockroom and receiving areas need coverage on the receiving door itself and along the transfer path from dock to shelf. Frame the doorway so incoming people and packages are both visible, since this is where internal shrinkage and vendor theft most often happen unnoticed.

Exterior and parking areas benefit from higher-resolution overview cameras and enough lighting to keep footage usable after dark. Outdoor runs need weatherproof and tamper-resistant housings along with properly protected conduit, since exposed cabling is an easy target and a dead camera produces nothing but an empty frame when you need it most.

  • Entrances: diagonal ID camera at 8 to 12 feet, paired with exterior overview coverage.
  • Checkout: overhead wide shot plus angled detail camera, with self-checkout getting a dedicated payment-pad view.
  • Aisles: diagonal corner mounts to defeat shelf-created blind spots.

Matching Camera Types, Lenses, and Lighting to the Job

The hardware you choose should follow the zone’s purpose, not the other way around.

Dome cameras work well for indoor overview roles because their housing is harder to tell which direction the lens is pointed, which discourages tampering. Bullet cameras suit fixed identification jobs like entrances and checkout, since their shape makes the aim obvious and the deterrence value higher. PTZ (pan-tilt-zoom) cameras are useful in large stores where staff may need to actively track a person across a wide floor. Fisheye cameras mounted centrally in a small store can cover an entire room in one frame, though they sacrifice detail at the edges.

Lens choice follows the same logic. For wide overview shots meant to establish context, a 16 to 24mm equivalent elevated wide shot is a solid starting point for showing the full floor and understanding movement through a space. For identification work at entrances or down long aisles, an 8 to 16mm varifocal lens lets you narrow the field of view enough to resolve a usable face.

Mounting height runs between 8 and 16 feet in most retail settings. Lower in that range favors face capture at entrances and registers; higher favors broad context in open floor areas. Going too high anywhere you need identification is a common mistake, since steep downward angles flatten faces into unusable frames.

Lighting matters as much as the camera itself. Position cameras to avoid shooting directly into glass doors or windows during daylight, since backlighting silhouettes anyone walking through. Choose WDR-capable (wide dynamic range) models for any spot facing glass, and consider true-color night vision cameras over standard infrared where you need to document clothing color or vehicle color after dark.

  • Dome for discreet overview, bullet for visible deterrence, PTZ for active tracking, fisheye for single-room coverage.
  • Wide lenses (16 to 24mm equivalent) for context, narrower varifocal lenses (8 to 16mm) for faces at distance.
  • Mount 8 to 16 feet, favoring the lower end near entrances and registers.
  • Use WDR cameras near glass and true-color night vision for exterior approaches.

Pro Tip: Run a test recording from the exact mounting height and angle you plan to install before you commit to drilling, since a few inches of height or a slightly wrong angle can turn a usable face shot into a blur.

Running a Store Walk and Building a Risk Map

A placement plan built from a floor plan and a notepad beats one built from guesswork every time.

  1. Start with a basic floor plan, hand-drawn or printed, and walk the store during a peak hour to observe real traffic flow rather than assumed flow.
  2. Mark choke points, concealment spots behind tall fixtures, and any place where shelving or displays break a clean sightline from likely camera positions.
  3. For each marked spot, decide what kind of evidence you actually need: wide context, a clear face, or close transaction detail, since that decision drives both camera type and lens choice.
  4. Note test-shot distances for each identification point. A face needs to fill enough of the frame to be recognizable, which usually means planning for a tighter angle than first instinct suggests.
  5. Use simple tools for this phase: a tape measure for mounting height and distance, a smartphone held at candidate heights to record test footage, and temporary mounts or even a steady hand to preview angles before permanent installation.
  6. Review the test clips on a full-size screen, not a phone, and check whether a face is identifiable at the target distance. Adjust the angle, height, or lens if it is not, and record again.

This iterative test-and-adjust step is the one most stores skip, and it’s the reason a camera that looked fine on the shelf ends up producing footage nobody can use after an incident.

What to Check Before You Finalize a Camera Plan

A short, concrete checklist keeps a site visit from missing something you will regret later.

  • Confirm entrances, registers, self-checkout stations, and high-value displays each have a clear identification angle, not just an overview.
  • Confirm stockroom and receiving doors are framed to capture both people and packages moving through them.
  • Confirm exterior approaches and parking areas have adequate lighting and weatherproof housings.
  • Confirm footage storage, whether local NVR or cloud, has enough retention days for your business and a backup power plan for outages.

During the visit, ask directly: What level of identification does this spot actually need? Is any sightline blocked by a display, a pillar, or a hanging sign? Is current lighting sufficient for a usable image, day and night? Who has access to stored footage, and what are the retention settings? Test clips should be checked for face clarity at the planned distance, and you should confirm tamper alerts and basic camera health monitoring are active, not just assumed. Avoid placing any camera inside restrooms or fitting rooms, and do not deploy automatic biometric recognition without legal notice and documented consumer controls, a requirement the Federal Trade Commission enforces directly against retailers that get it wrong.

What OSHA and the FTC Expect From Retail Surveillance

Workplace-safety and privacy guidance both intersect with where and how you place cameras.

OSHA’s guidance for retail and service workplaces recommends cameras, mirrors, and adequate lighting as part of a broader violence-prevention strategy, and suggests folding daily camera checks into existing routines like lock and lighting checks rather than treating surveillance as a separate system. OSHA’s local emphasis program for retail facilities also flags means of egress, material handling, and electrical safety as inspection priorities, all of which affect where you can legally run camera cabling and mount hardware without creating a new hazard.

On the privacy side, the FTC’s enforcement history, including its action against Rite Aid over facial recognition deployed without adequate notice or accuracy controls, is a clear signal: document your surveillance policy, give customers and employees clear notice if any biometric tool is in use, and build camera checks into daily safety routines rather than an annual afterthought.

What OSHA and the FTC Expect From Retail Surveillance — overview diagram

What Installers See Go Wrong, and How to Fix It Before It Costs You

What Installers See Go Wrong, and How to Fix It Before It Costs You — overview diagram

The mistake we see most often is a camera mounted where it looked convenient during installation rather than where a site walk said it needed to be. A camera aimed at the wrong angle at checkout, or hung too high at an entrance, produces footage that technically exists but identifies no one.

Testing placement with a temporary mount before final installation, the approach this guide walks through, catches that problem before it becomes a permanent blind spot. Our focus has always been on professional-grade systems built for the specific job a zone requires, and our installation guide and placement checklist give you a practical next step once your site walk is done.

— Safes and Security Solutions

How We Can Help You Put This Plan Into Place

Once your site walk and risk map are done, the next steps are straightforward: measure your mounting points, confirm your floor plan matches your notes, pick a system that fits your store’s size, test the placements, and schedule installation.

Safes and Security Solutions

For a single contiguous store, a 2K PoE 8-channel ColorX security system with true color night vision covers most of the zones outlined above in one kit. Larger stores with more entrances, aisles, and stockroom doors to cover often need the added capacity of an Amcrest 4K 16-channel NVR with 8 PoE ports.

  • Measure mounting heights and distances at each zone identified in your risk map.
  • Choose a PoE kit or cloud-based system sized to your camera count.
  • Test placements with temporary mounts before final installation.
  • Reach out to support teams for site-specific plans and details on secure checkout and shipping within the continental US.

Our small business CCTV installation guide walks through wiring and PoE setup once your placements are confirmed, and our team is ready to help you map hardware to the plan you just built.

FAQ

Where is the best place to store my camera?

The best camera positions are entrances, checkout areas, aisle intersections, high-value displays, stockroom and receiving doors, and exterior approaches. Mount identification cameras at 8 to 12 feet with a diagonal angle toward faces, and pair them with wider overview cameras for context.

Where not to install security cameras?

Avoid restrooms, fitting rooms, and any other space where customers or employees have a reasonable expectation of privacy. Automatic biometric recognition tools also need clear notice and documented controls before deployment, a requirement the FTC has enforced against retailers that skipped it.

Where should cameras be placed?

Place cameras to cover the six priority retail zones: entrances and exits, checkout and self-checkout, aisles and blind-spot intersections, high-value merchandise displays, stockroom and receiving doors, and exterior parking approaches. A store walk that maps traffic flow and sightline obstructions is the most reliable way to confirm exact mounting points for each zone.

How high should a security camera be off the ground?

Most retail cameras mount between 8 and 16 feet, with the lower end of that range favoring clear face capture at entrances and registers. Mounting too high flattens the angle and can make faces difficult to identify in review.
