Product Features
Key Features
- Person, Vehicle, Animal & Package Detection
- 2-Way Talk & Quick Response Message

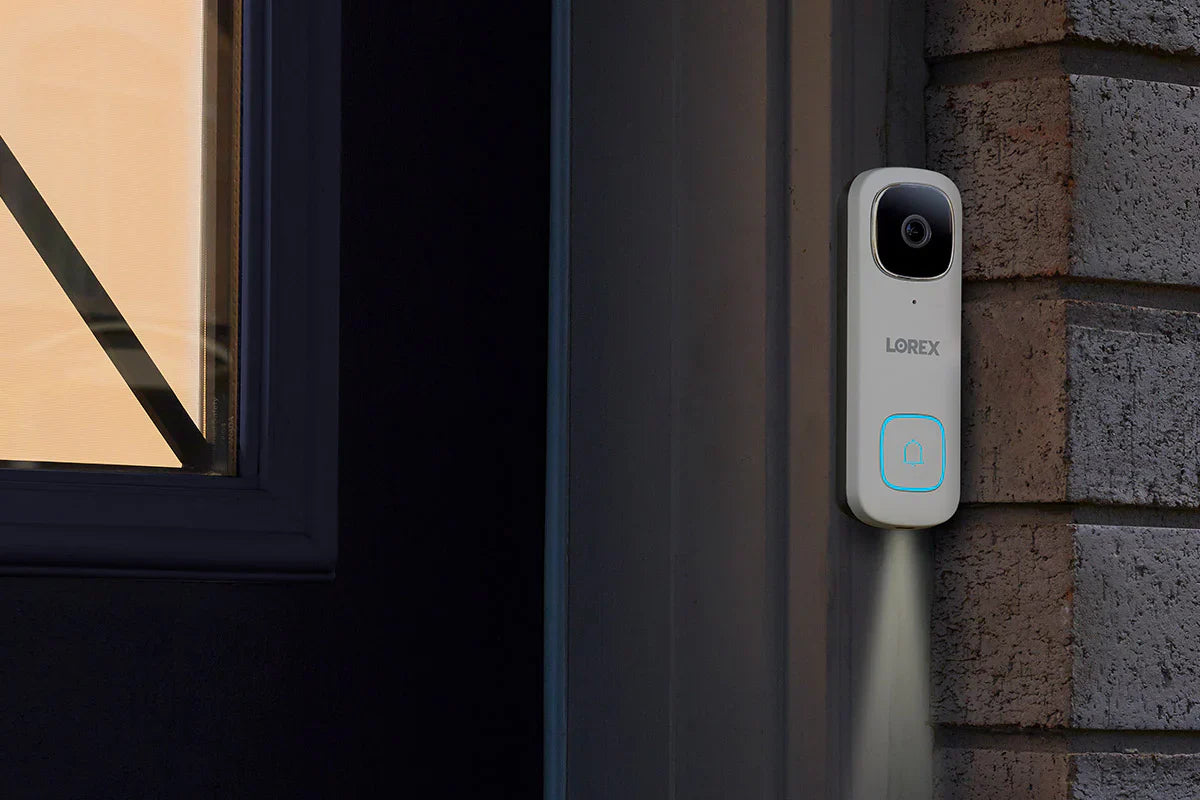

- Motion-activated Nightlight
- Full Head to Toe View (9:16)
- Pre-installed 32GB MicroSD card (upgradable to 256GB)
- No Monthly Subscription
- Requires 16-24 VAC

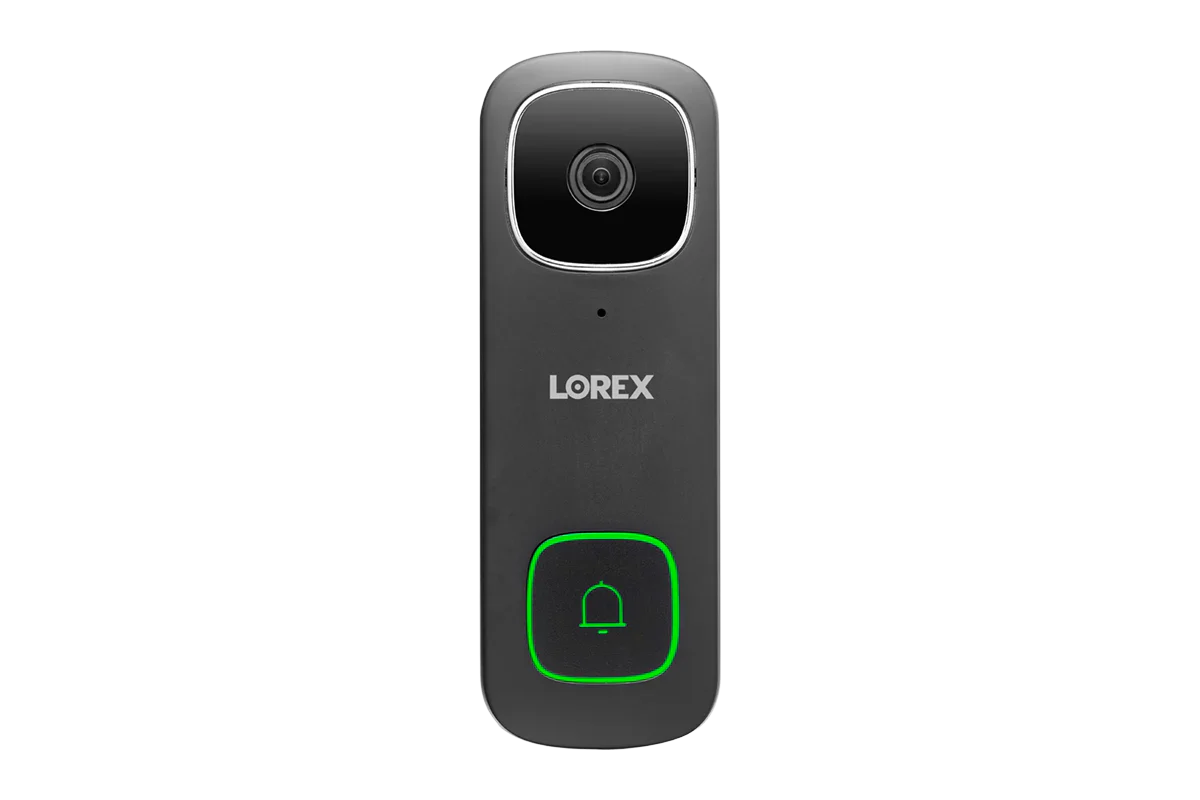

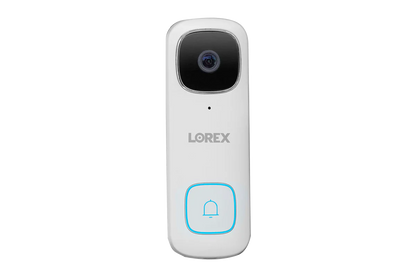

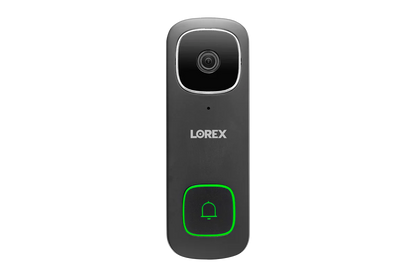

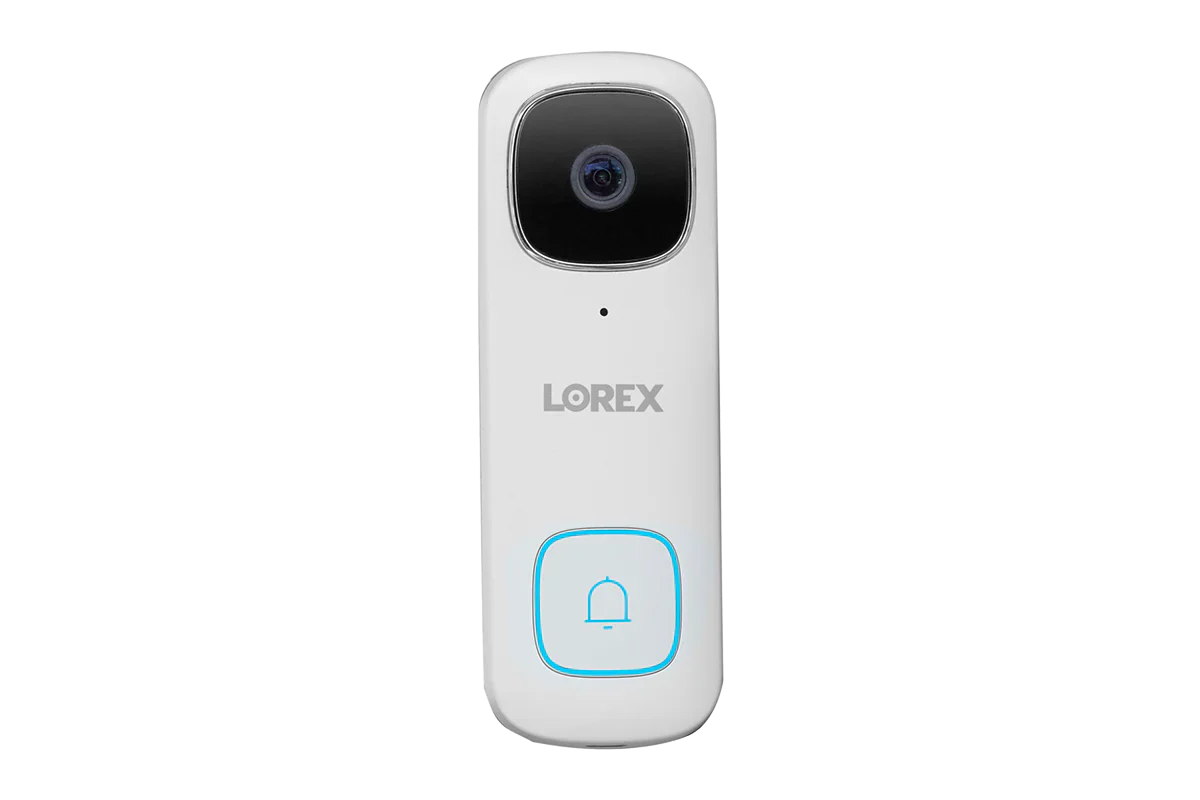

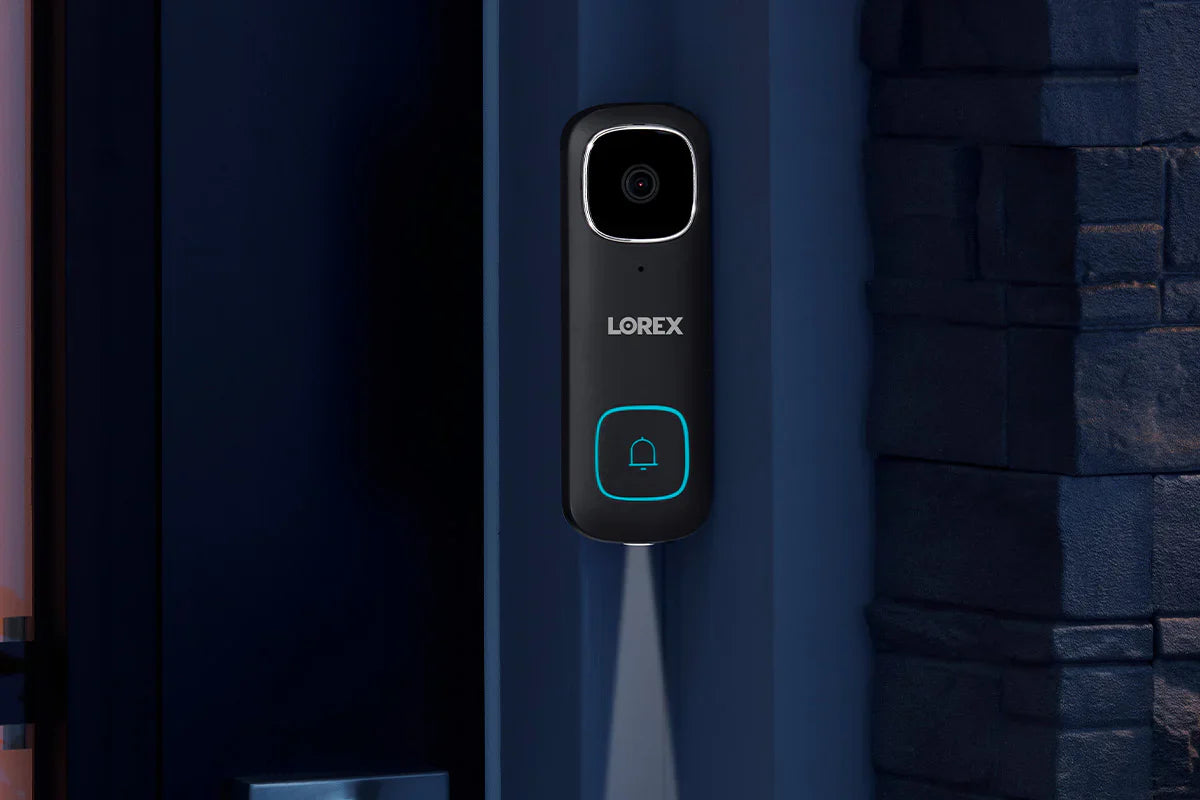

4K Wired Video Doorbell
Person
Detection
Vehicle
Detection
Animal
Detection
Package
Detection

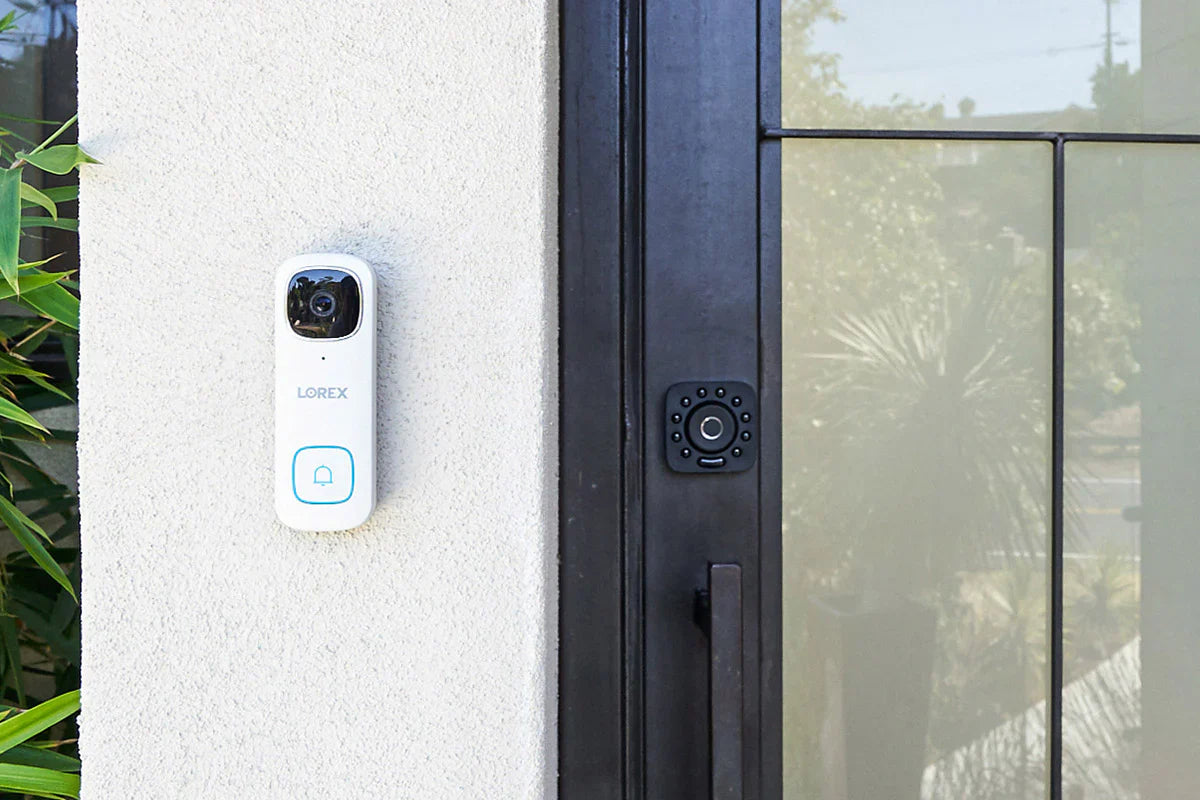

Reliable Wired Connection
This doorbell requires existing wiring. This continuous power means no interruption with having to change or charge batteries.
Installation Requirements:
Existing electrical wiring for doorbell.
16-24 VAC
2.4/5GHz*
*Due to Industry Canada (IC) restrictions, your 5GHz Wi-Fi network may not be supported if you are located in Canada.
Most of your security footage is of you!
Keep your recordings private and in your control.
Dedicated Local Storage
- Keep Moments Private
- All Data/Footage Stored Locally
In-Camera Edge AI
- Detection Processed Locally
- Private and Secure Data
Private by Design
- Enhanced Privacy Features
- Control Devices, Storage, and Settings
Build your security the way
you want with the Lorex
Easily grow your security by adding Lorex Fusion Wired and Wi-Fi Cameras.
All-in-One Security
Connect all of your devices to one recorder with secure local storage for enhanced privacy and protection.
24/7 Recording
Record continuously to your NVR’s local (and upgradeable) storage with no monthly fees.*
One App Access
Remotely monitor and control your Lorex devices from anywhere using the Lorex Classic app.
*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.
Product Specifications
| Max Video Resolution | 8MP (2160 × 3840) |
|---|---|
| Aspect Ratio | 9:16 |
| Video Modes | 4K, 2K, 1080p, 720p |
| Max Lens Field of View | 150º diagonal |
| Night Vision | Color and IR Night Vision with IR Cut Filter |
| Indoor/Outdoor | Outdoor, IP65 rated |
| Digital Zoom | 8× |
|---|---|
| Audio | Full Duplex 2-Way audio |
| Network Connectivity | 2.4/5GHz 802.11b/g/n/ac |
| Operating Temperature | -4°F ~ 122°F / -20°C ~ 50°C |
| Product Dimensions (W × D × H) | 5.12 × 1.77 × 0.91” / 130 × 44 × 23 mm |
| Product Weight | 0.26 lb / 0.11 kg |
What's Included?
- QR Code
- MicroSD Card Slot
- Reset Button
- USB Power Port
- Power Terminals
- Speaker
- Camera Lens
- Microphone
- IR Light
- Smart Security (SS) LED
- Smart Security (SS) Call Button
- Night Light
Package Contents:
4K Wired Video Doorbell
Mounting Bracket
Horizontal Wedge 15°
Vertical Wedge 5°
USB Power Cable
Extension Wire
Connecting Wires × 2
Chime Kit
Wire Harness
Anchors & Screws × 2
1/4" Drill Bit
Wire Caps × 3
Release Pin
Pre-installed 32GB MicroSD card
Doorbell Comparison Chart
B241AJD 1080p Wired Video Doorbell |
B451AJD, B451AJDB 2K Wired Video Doorbell |
B463AJD, B463AJDB 2K Battery Video Doorbell |
B862AJD, B862AJDB 4K Wired Video Doorbell |
|
|---|---|---|---|---|
| Resolution | 1080p / 2MP (1920 × 1080) | 2K / 4MP (2560 × 1920) | 2K / 4MP (2560 × 1920) | 4K / 8MP (2160 × 3840) |

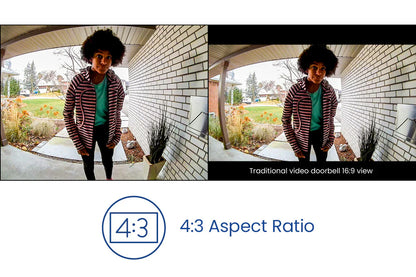

| Aspect Ratio |  |
 |
|
 |
| Color | Dark Grey |
|
|
|
| Detection | Person | Person | Person | Person, Vehicle, Animal, Package |
| Power Options (Voltage) | Wired (16-24VAC) | Wired (16-24VAC) | Built-in Battery, Wired (8-24VAC) | Wired (16-24VAC) |
| Storage | 32GB Included (Upgradable to 256GB) |
32GB Included (Upgradable to 256GB) |
32GB Included (Upgradable to 256GB) |
32GB Included (Upgradable to 256GB) |
| Network Connectivity | 2.4GHz Wi-Fi | 2.4GHz / 5GHz Wi-Fi* | 2.4GHz / 5GHz Wi-Fi* | 2.4GHz / 5GHz Wi-Fi* |
| Chime Kit | Not Included | Included | Not Included | Included |
| Lorex Compatibility | Fusion, ACCHM2 Wi-Fi Chimebox |
Fusion, Lorex Smart Home Security Center, ACCHM2 Wi-Fi Chimebox |
Fusion, ACCHM2 Wi-Fi Chimebox |
Fusion, ACCHM2 Wi-Fi Chimebox |
| Third-Party Compatibility | Alexa, Google Assistant | Google Assistant | Alexa, Google Assistant | Alexa, Google Assistant |
| Communication (Audio) | 2-Way Talk, Quick & Custom Response |
2-Way Talk, Quick & Custom Response |
2-Way Talk, Quick & Custom Response |
2-Way Talk, Quick & Custom Response |
| Night Vision | IR / Color | IR / Color | IR / Color | IR / Color |
| Operating Temperature | -4°F / -20°C - 122°F / 50°C | -4°F / -20°C - 122°F / 50°C | 14°F to 122°F / -10°C to 50°C | -4°F / -20°C - 122°F / 50°C |
*Due to Industry Canada (IC) restrictions, your 5GHz Wi-Fi network may not be supported if you are located in Canada.
