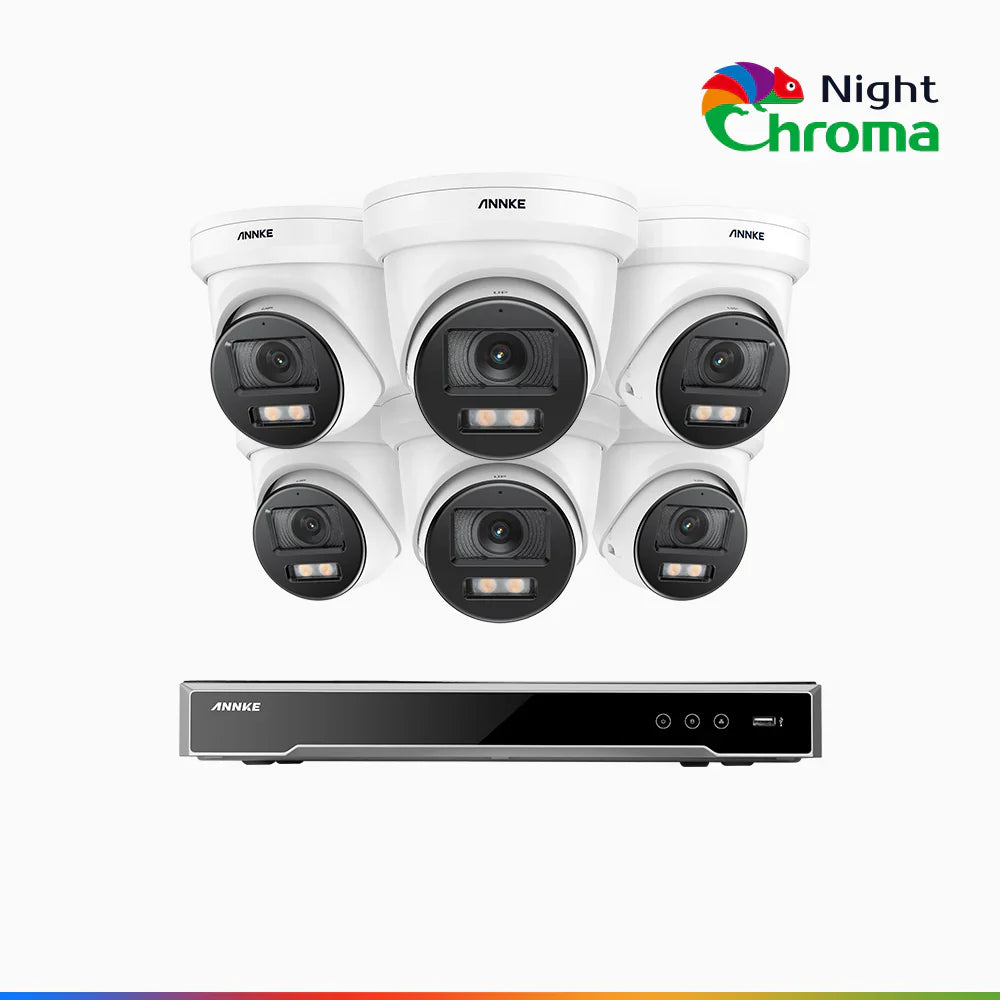

ANNKE NightChromaTM NCK800 – 4K 16 Channel 6 Cameras PoE Security System, f/1.0 Super Aperture, Color Night Vision, 2CH 4K Decoding Capability, Human & Vehicle Detection, Intelligent Behavior Analysis, Built-in Mic, 124° FoV, All-Metal Housing
Unique & Unrivaled Tech Behind Acme Color Night Vision
Unlock the Future of Surveillance with NC800: Experience unrivaled 4K color night vision powered by top-tier R&D, materials, and manufacturing. With an f/1.0 super aperture and advanced backside illumination sensor, it captures vibrant, detailed footage even in low light. Plus, intelligent ISP image processing ensures high-fidelity images with balanced lighting. Trust NC800 for cutting-edge security solutions.
Best 4K Ultra HD at 20 fps with 1/1.2″ Sensor
The PoE camera offers unparalleled 4K clarity with the pioneering 1/1.2″ STARVIS CMOS sensor. This flagship sensor captures the most authentic colors in every frame, every time. The 2.8 mm lens with an ultra-wide 124° diagonal angle covers a lot of objects, perfect for monitoring large areas.
4 Smartest Behavior Analysis
The smartest behavior analysis analyzes an object’s behavior, including line crossing, intrusion, region entrance & exit, and sends you instant alerts when an object crosses the preset virtual line or intrudes a region, or when it enters/exits the preset areas.
Human & Vehicle Detection – Perfection in Motion
It’s a leap in smart motion detection. The advanced human & vehicle detection will only detect a person or vehicle, which helps reduce the number of unwanted motion alerts triggered by animals, or random inanimate objects, like waving branches, falling leaves, raindrops, etc.
Noise-Cancelling Audio
The built-in noise-cancelling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away.
Work with ANNKE NVRs for 24/7 Record
This IP video camera can work standalone for your unlimited live stream. You can also connect the camera to an ANNKE Upgraded 4K PoE NVR with just a single Ethernet cable for 24/7 record.
Engineered to Conquer All Severe Weather
With the IP67 weatherproof rating, the powerful camera is built to be installed outdoors & indoors without limitation. It still works perfectly even submerged in 1 meter of water for 30 minutes.
Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.
Metal
Rugged Housing
-22 °F | -30 °C
Cold Rating
140 °F | 60 °C
Heat Rating
IP67
Water Rating
Small on Prices, Big on Features
Local Storage
Supports up to 256 GB TF card (not included) for local video storage without monthly cloud fees.
Image Enhancement
20 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 3K Super HD clarity.
Unlimited Remote Access
Easily access your system via intuitive ANNKE Vision App from virtually anywhere in the world.
PoE or DC Power
Power on the camera via PoE or plug the camera to an outlet for power supply.
Specification
| Camera | |
| Image Sensor1/1.2" Progressive Scan CMOS | Video Bitrate32 Kbps — 16 Mbps |
| Video Resolution50 Hz: 20 fps (3840 X 2160, 3072 X 1728) | Video CompressionMain Stream: H.265/H.264/H.264+/H.265+ |
| 25 fps (2688 X 1520, 1920 X 1080, 1280 X 720) | Sub-Stream: H.265/H.264/MJPEG |
| 60 Hz: 20 fps (3840 X 2160, 3072 X 1728) | Third Stream: H.265/H.264 |
| 30 fps (2688 X 1520, 1920 X 1080, 1280 X 720) | |
| Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC | Audio Input/OutputBuilt-in Microphone |
| Sub Stream50 Hz: 25 fps (640 X 480, 640 X 360, 320 X 240) | Perimeter ProtectionLine Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection |
| 60 Hz: 30 fps (640 X 480, 640 X 360, 320 X 240) | |
| Min. Illumination0.0005 Lux @ (F1.0, AGC On), 0 Lux with Light | Angle of ViewHorizontal FoV 102°, Vertical FoV 52°, Diagonal FoV 124° |
| Night Vision DistanceUp to 130 ft/40 m | Image EnhancementBLC, HLC, 3D DNR |
| Wide Dynamic Range130 dB WDR | Face CaptureYes |
| Network StorageMicroSD/SDHC/SDXC card (256 GB) Local Storage, and NAS (NFS, SMB/CIFS) | Smart EventMotion Detection 2.0 (Human and Vehicle), Line Crossing Detection, Intrusion Detection |
| ONVIFSupport | Day/Night SwitchDay, Night, Auto, Schedule |
| EthernetRJ45 X1 (10 M/100 M) | |
| General | |
| HousingFront Cover: Metal, Back Cover: Metal | ColorWhite |
| Operating PowerPoE 802.3af, Class 3), 12 V DC ± 25% | StorageMicroSD/SDHC/SDXC card (256 GB) local storage &NAS (NFS, SMB/CIFS), ANR |
| Hardware ResetYes | Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C |
| Indoor/OutdoorIndoor/Outdoor | Weatherproof RatingIP67 |
| Dimension (L X W X H)78.8 X 78.6 X 215.2 mm (3.1'' X 3.1'' X 8.5'') | Weight1.9 lbs./860 g |
