Vault Door Fire Rating: What the Numbers Really Mean

A vault door fire rating tells you how long that door assembly, tested as a unit in a furnace, kept the inside of an enclosure below a set temperature. It does not tell you that the whole room is fireproof, and it does not tell you the door is burglar-resistant. The rating only means something when it is backed by an independent label, set in walls that can match it, and installed the way the manufacturer specifies. This guide explains how to read the rating, check it, and avoid the mistakes that make a good door perform like a bad one.

TL;DR

• A fire-rated vault door is classified under UL 155, which looks at fire resistance and heat protection of contents over designated time periods. The benchmark is that no interior point exceeds 350°F (177°C).
• A rating is only real if a permanent label names a third-party certification agency and a test standard. A brochure claim is not a rating.
• The door is one part of the system. Walls, ceiling, floor, frame and installation decide whether the rating holds up in a real fire.
• A vault door rating is not the same thing as a safe rating. Safes are tested as complete units, and doors are tested as assemblies set in a test wall.
• Fire, burglary, ballistic and storm ratings are separate tests. Decide which risks you actually face before you buy.

Table of Contents

• What a vault door fire rating actually measures
• Fire doors and vault doors use different rating ladders
• How to verify a rating before you pay
• How a vault door rating differs from a safe rating
• The door is only as good as the walls around it
• Installation can void a rating
• Our perspective: buy the system, not the number
• Choosing a fire-rated vault door for your space
• When a safe is the better answer
• FAQ
• Sources

What a vault door fire rating actually measures

The standard behind most fire-rated vault doors in the United States is UL 155. It classifies vault-door assemblies for fire resistance and for heat protection of contents over designated periods. The same standard recommends vaults for enclosures where no interior point exceeds 350°F (177°C) during the specified fire exposure, and for enclosures not larger than 5,000 cubic feet (142 cubic meters).

Three ideas sit inside that sentence, and each one changes how you shop.

Time is a classification, not a promise. A rating expressed in hours is the period of furnace exposure the assembly was classified for. It is a test result under controlled conditions. UL itself describes its testing as objective confirmation of performance under a specific test method in a controlled laboratory setting. A real fire has different fuel, ventilation and duration, so treat the rating as a comparison tool between doors, not a guarantee of how long your valuables survive.

The 350°F limit is about contents. Paper begins to char at temperatures well above that figure, which is why the benchmark focuses on the inside of the enclosure rather than the outside face of the steel. Digital media, film and some medications are far more heat-sensitive than paper, so if those are what you store, ask what the rated temperature limit means for them before you rely on a vault room.

Size matters. The 5,000 cubic foot recommendation means the standard assumes a bounded enclosure. A very large room with a door that is rated for a smaller volume stretches the logic of the classification.

Fire doors and vault doors use different rating ladders

People often mix the two systems. Ordinary building fire doors follow the ladder you see on commercial openings: ratings of 4, 3, 1-1/2, 1 and 3/4 hours, or 30 or 20 minutes, indicating the duration of fire exposure. Those doors protect an opening in a fire-rated wall, and the code decides which rating you need based on the wall.

That last point comes straight from the NFPA: the required fire protection rating depends on the rating of the fire-rated assembly and on the applicable code tables with their footnotes or modifications. A vault door is a different product with a different purpose. It is built to protect contents and resist attack, not to compartmentalize a hallway. If someone quotes a “2-hour door” without saying which standard it was tested to, ask. A building fire door and a vault door can share a number and still be unrelated products.

How to verify a rating before you pay

A claim on a web page is marketing. A label is evidence. The NFPA explains that a fire door label identifies the manufacturer, the third-party certification agency, the component rating, the fire test standard, and the temperature rise at 30 minutes if it is less than 650°F (361°C). That list is a useful checklist for any fire-rated door, vault doors included.

Before you order, ask for the following in writing:

1. The classification mark and standard. For a vault door you expect UL 155 or an equivalent third-party classification, not an in-house furnace test.
2. The name of the certifying agency. An independent body, not the manufacturer, should have witnessed the test.
3. The rating tied to the exact model and configuration. A rating on one door does not automatically carry to a different thickness, a different frame or a different lock package.
4. A photo or drawing of where the label sits. If the label will be hidden by trim or covered during installation, ask how an inspector or insurer will see it later.
5. The conditions of the test. Wall type, frame and anchoring used in the test are part of what you are buying.

The last two items matter because third-party certification is more than a single lab visit. A UK trade body notes that certification schemes include independent audits of management and manufacturing processes and regular product scrutiny, so production stays consistent rather than relying on a one-time test. The scheme described is British, but the principle applies anywhere: you want a rating that someone keeps checking.

Read the other ratings separately

Fire is only one of the tests a vault door may carry. Fire testing is distinct from testing for bullet-resisting barriers or blast-resistant doors, which use other standards, such as ASTM F2247 for blast-resistant doors. Door assemblies are fire tested using methods such as UL 10B and UL 10C, the latter for positive-pressure fire tests. A door with a strong fire classification may carry no burglary or ballistic rating at all, and the reverse is also true.

Write down your threats in order. For a document room in a law office, fire and water may rank above forced entry. For a jewelry or firearms room, theft comes first. For a saferoom, storm resistance is the headline and fire is a secondary benefit. Our guide to vault door installation and ICC 500 ratings covers the storm side in more detail.

How a vault door rating differs from a safe rating

This is the question that trips up the most buyers. A fire-rated safe is evaluated as a complete, self-contained product: body, door, insulation and seals together. A vault door is evaluated as a door assembly meant to be set into a separate enclosure. The classification therefore describes the door and its frame in a test arrangement, and it assumes the surrounding construction does its part.

In practical terms:

The key difference is the third row. A safe with a stated rating is one object whose performance was measured as a whole. A vault door can be flawless and still sit in a wall that lets heat through. That is why serious buyers think of a vault room as a system.

If what you want is simply a container for papers, a fire-rated safe may be the cleaner answer. A 2-hour UL-listed unit such as the American Security UL1511 2-hour home fire safe comes with its protection built in, with no wall construction required.

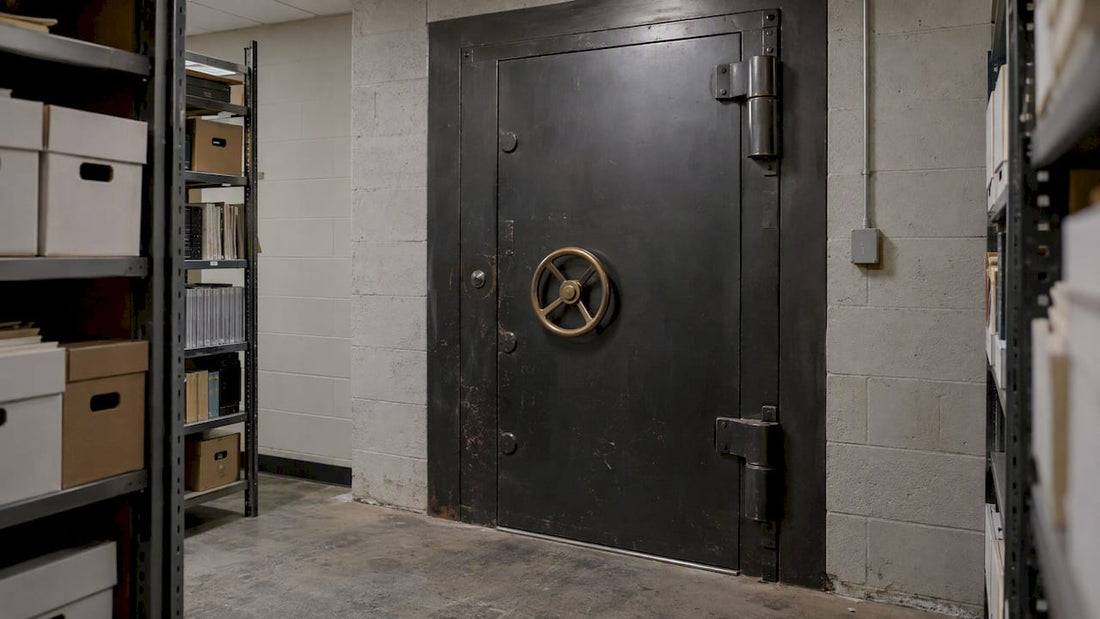

The door is only as good as the walls around it

The federal standard for vault construction makes the system idea concrete. FED-STD 832 specifies construction requirements for vault walls, floors, ceilings, doors and frames. It covers Class A, B and C vaults, and for Class A it calls for 8-inch reinforced-concrete walls, floors and ceilings. It also requires Class 5 vault doors conforming to Federal Specification AA-D-600 for all three classes.

Those are government security vaults, and most homeowners and small businesses will not build to that standard. But the document shows how professionals think: the door, the frame and every surface of the room are specified together. If you are searching for vault wall thickness, there is no single number that applies to every project. The right thickness depends on whether you are building for fire, for burglary or for both, on the material (reinforced concrete, block, or a modular panel system) and on the door’s own test conditions. Ask the door manufacturer what wall construction its rating assumes, then have the builder match it.

A few practical consequences:

• Match the wall to the door. A high-rated door in a standard wood-framed wall defeats the purpose. Heat and attack will go around the door.
• Think about penetrations. Conduit, vents, plumbing and cable runs are the usual weak points. Each opening needs to be sealed or sleeved in a way that fits the room’s design.
• Check the frame and anchoring. The frame is part of the tested assembly. The anchors, the grout or fill, and the clearance around the door are not decoration.
• Confirm the size before you order. Doorway dimensions drive the frame and the wall opening. Our vault door size guide shows how to measure against the federal 48 by 82 inch specification.

Installation can void a rating

A rating describes the product installed the way the manufacturer intended. Change the conditions and you may lose it. State rules reflect this: Connecticut, for example, requires that vault door installation follow the manufacturer’s instructions and be entrusted only to people experienced in that work. The same regulation requires each vault door unit to bear a fire-resistance rating in hours comparable to the classification of the vault walls. That is a Connecticut rule, not a national one, but it states the right principle: the door’s rating and the wall’s rating should be in step.

Before installation day, settle these points:

1. Who is installing? Choose someone who has set vault doors before, not a general carpenter learning on your project.
2. Where will the door swing? In-swing and out-swing doors have different clearance needs and different effects on the room layout.
3. Is the floor ready? A vault door is heavy. The slab, the threshold and the path from the delivery truck all need planning.
4. What will you change later? Cutting a vent into a rated wall or adding a conduit after the fact can undo what you paid for.

Our vault door installation guide walks through the buyer’s side of this, including how to keep a storm rating intact.

Keep the paper trail and inspect

A rating that cannot be shown later is hard to rely on. Keep the label photo, the manufacturer’s installation instructions, the invoice and the installer’s sign-off together. Fire barriers also need upkeep: a person responsible for a commercial building should treat the vault door like any other life-safety component and follow a documented routine, as described in this fire safety maintenance compliance guide for facility managers. Check that the door closes and latches properly, that seals are intact, and that nothing has been stacked in a way that blocks it.

Moving parts need more attention than fixed ones. A comment submitted during an NFPA code review argued that rolling steel fire doors used for openness are less reliable than fixed fire barriers and need more inspection and maintenance. A hinged vault door is a different design, but the lesson carries over: a door that moves has parts that wear.

Our perspective: buy the system, not the number

We sell safes and vault doors, and the most common mistake we see is buyers comparing fire ratings as if they were horsepower. A bigger number feels safer. In practice, we would rather you answer four questions first: what are you protecting, what is the real threat, what will the walls be, and who will install it?

For a home office with documents and a few valuables, a UL-classified fire safe is often the more sensible purchase than building a room. For a gun room, a jewelry room or a pharmacy back room where you need walk-in access, a vault door earns its cost, but only if the construction around it is planned from the start. We would sooner talk you into a smaller, correctly built room than sell a premium door into a weak wall.

When you shop, ask every seller, including us, for the label details, the standard and the wall assumptions. A seller who cannot answer those questions is not ready to sell you a vault door.

— Safes and Security Solutions

Choosing a fire-rated vault door for your space

Use the use case to narrow the field.

Home saferoom or secure closet. You will probably care about storm and forced-entry performance as much as fire. Start with our guide to top vault door security features for homes and saferooms and compare models in the residential vault door guide.

Gun room or collection room. Fire protection protects the investment, and burglary resistance protects it from theft. Plan ventilation and humidity control, because sealed rooms trap moisture. Doors such as the SnapSafe Hornady in-swing vault door are listed as fire-resistant steel, and you should check the product page for the exact rating and certification on the model you choose.

Business records, pharmacy or professional office. If regulation or your insurer requires specific protection, get that requirement in writing first and match the door to it. Our commercial vault room door guide covers what to compare, and the vault door buying guide for secure rooms explains the full process from sizing to delivery.

A short comparison checklist

When a safe is the better answer

Not every buyer needs a room. If your goal is to protect documents, hard drives, jewelry or a handful of handguns, a purpose-built safe gives you a tested, complete unit with no construction. Browse our home safes, gun safes, jewelry safes and pharmacy safes, all shipped free within the continental U.S. If you are not sure whether you need a safe or a vault door, contact us through the store with your room size, contents and budget, and we will tell you which route fits.

FAQ

Is a fire-rated vault door the same as a fire-rated safe?

No. A safe is tested as a whole container, while a vault door is classified as a door and frame assembly that sits in a separate enclosure. The door’s rating only helps the contents if the walls, ceiling and floor are built to perform alongside it.

How can I tell if my vault door is really fire-rated?

Look for a permanent label. It should name the manufacturer, the third-party certification agency, the rating and the fire test standard. If the door has no label, or the seller can only offer a brochure claim, you cannot treat the rating as verified.

What wall thickness does a fire-rated vault door need?

There is no universal figure. Government Class A vaults call for 8-inch reinforced-concrete walls, floors and ceilings, but a home or business room may be built differently. Ask the door manufacturer which wall construction its rating assumes and have your builder match it.

Does a higher fire rating mean better burglary protection?

No. Fire, burglary, ballistic and blast ratings come from different tests. A door can score well on one and carry no classification for another, so check each rating separately against the risks you actually face.

Sources

• UL 155, Standard for vault doors, UL Standards & Engagement
• UL fire-rated doors guide
• NFPA, Fire Doors and NFPA 80 FAQs
• UL, Doors and Hardware
• BWF, Fire Door Certification fact card
• FED-STD 832, Construction Methods and Material for Vaults
• Regulations of Connecticut State Agencies
• NFPA 101 public input report
• Fire safety maintenance compliance guide
